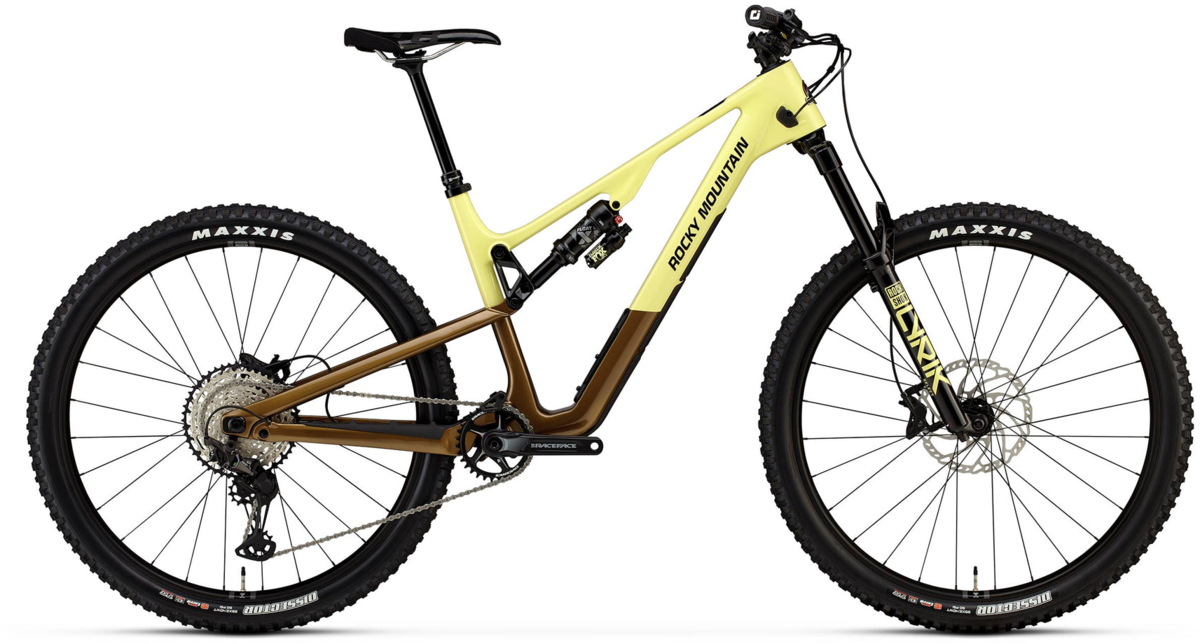

Rocky Mountain Instinct Carbon 50
$6,999.00
Details
RockShox Lyrik Select RC, Fox Float X Performance, Shimano XT
The Instinct Carbon is at home on technical trails, but still allows you to push the distance and crush the climbs. Our most versatile platform just got more adventure-ready with updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the ups, downs, and everything in between. Meet the Instinct Carbon.
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 572 | 621 | 640 | 649 |
| Head Tube Angle (deg) | 63.5 | 63.5 | 63.5 | 63.5 |
| Head Tube Length (mm) | 100 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 76.5 | 76.5 | 76.5 | 76.5 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 - 450 | 440 - 450 | 440 - 450 | 440 - 450 |
| Bottom Bracket Drop (mm) | 44 | 44 | 44 | 44 |
| Reach (mm) | 423 | 449 | 474 | 504 |
| Stack (mm) | 572 | 599 | 628 | 659 |
| Standover Height (mm) | 760 | 798 | 796 | 792 |
| Wheelbase (mm) | 1198 | 1227 | 1259 | 1293 |
| X-Small | 147.5 - 157.5 cm / 4’7” - 52” |
|---|---|
| Small | 152.5 - 167 cm / 5’0” - 5’6” |
| Medium | 162.5 - 177.5 cm / 5’4” - 5’10” |
| Large | 172.5 - 188 cm / 5’8” - 6’2” |
| X-Large | 183 - 198 cm / 6’0” - 6’6” |
Specs
| Frame | SMOOTHWALL™ Carbon | Penalty Box 2.0 Storage | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel | SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | RockShox Lyrik Select 150mm | Charger RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset |
| Rear Shock | Fox Float X Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
| Rims | WTB KOM Team i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl |
| Hubs |
Front Hub: Novatec D791SB Sealed Boost 15mm Rear Hub: DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
| Spokes | 2.0 Stainless |
| Tires | Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready | Tubeless Set Up | Sealant Incl |
| Bottom Bracket | Shimano SM-BBMT500 |
| Crankset | Race Face Aeffect Cinch | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm |
| Shifters | Shimano XT |
| Rear Derailleur | Shimano XT |
| Cassette/Freewheel | Shimano SLX 10-51T 12spd |
| Chain | Shimano M6100 |
| Brakes | Shimano MT6120 4 Piston | Metal Pads |
| Handlebars | Rocky Mountain AM | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm |
| Headset | FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Seatpost | X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm |
| Saddle | WTB Volt Race 142 | Cromoly rails |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| We are the Champions/Platinum Blonde/Black Dog / Medium / 29-inch | 770416480757 | B0320MD1 | 210000015426 |
